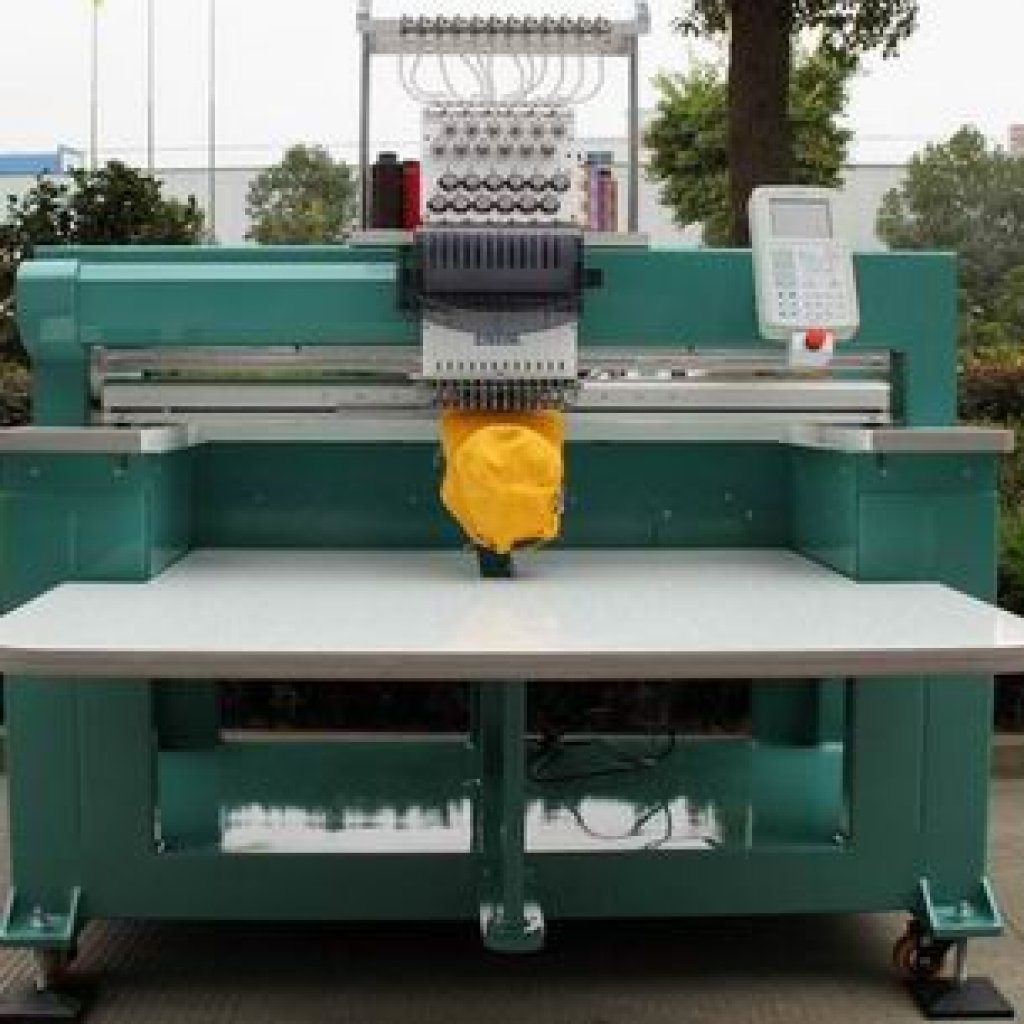

Width Sinlge Head Cap Machine

التوفر: موجود في المخزن

Technical Parameter


Model:SINSIM-WC1201
Needles:12 Needles
Head Number: 1
Net Weight: 200kgs
Em

Main Features:

- Suitable for flat cap embroidery and finished garments embroidery High speed up to 1000 RPM.

- New Arm Guide Rail.

- 110V or 220V self-adaptable power supply. No more external power box needed.

- Mainboard is built into the control panel, which reduces the possibility of damage by dust or external force.

- Support large capacity of USB flash drive from 2G and up with faster data transmission and more compatibility.

- Proper shut-down function powers off only moving parts such as X&Y axis and needle bar, but still keeps the data on screen when the emergency button is pushed.

- Precise digital degree on stop point: main shaft can be turned to any angle digitally with the number of degrees shown on the screen.

- Cap to flat (or vise versa) embroidery mode switch eliminating the possibility of hitting the frame.

- Keeping original file names in memory makes it easy to manage designs.

- Lay-out of keys on panel is more user-friendly.

Main Function:

- 3.8inch TFT True Color Displayer

- Modern Design of operating panel

- USB input port

- Color LCD display showing real time stitching

- Pre-sew design trace capable

- Emergency stop

- New machine head guide rail.

- Color-Change Mode: Step Color-change , Automatic Color Change

- Thread trimming system: Automatic Thread Trimmer, Solenoid thread holding, step motor thread trimming and catching.

- Needle Position Detecting: Rheostat

- Thread Break Detecting: Thread break detection ,Thread take-up spring or chopping wheel

- Memory: 1 Million, Design Number :99

- Language: Chinese, English, Turkish, French, Spanish, Portuguese

- Data Transfer Floppy Disk: Pattern input/output support USB updating.

- Network Function: Support multi-machine network, data transfer, state monitoring, operating though network.

- 270° wide cap frame unit

- Electricity:110V/60Hz or 220V/50Hz available

Hoops/Frames Included:

- 2 x Shirt Front Round Hoop 9 cm (3.5")

- 2 x Shirt Front Round Hoop 20 cm (9")

- 2 x Shirt Front Round Hoop 12 cm (4.7")

- 2 x Jacket Back Square Hoop 29 x 29 cm (12" x 12")

- 2 x Shirt Front Round Hoop 15 cm (5.9")


Cap Attachments Included:

Accessories Included:

Table and stand with wheels for easy moving around.

Exploded View of Machine

Operation Manual

Tool Kit.

[Example of model code]



SINSIM-CC(a), 9(b), 02(c)
Contents of model code :
a=model name
