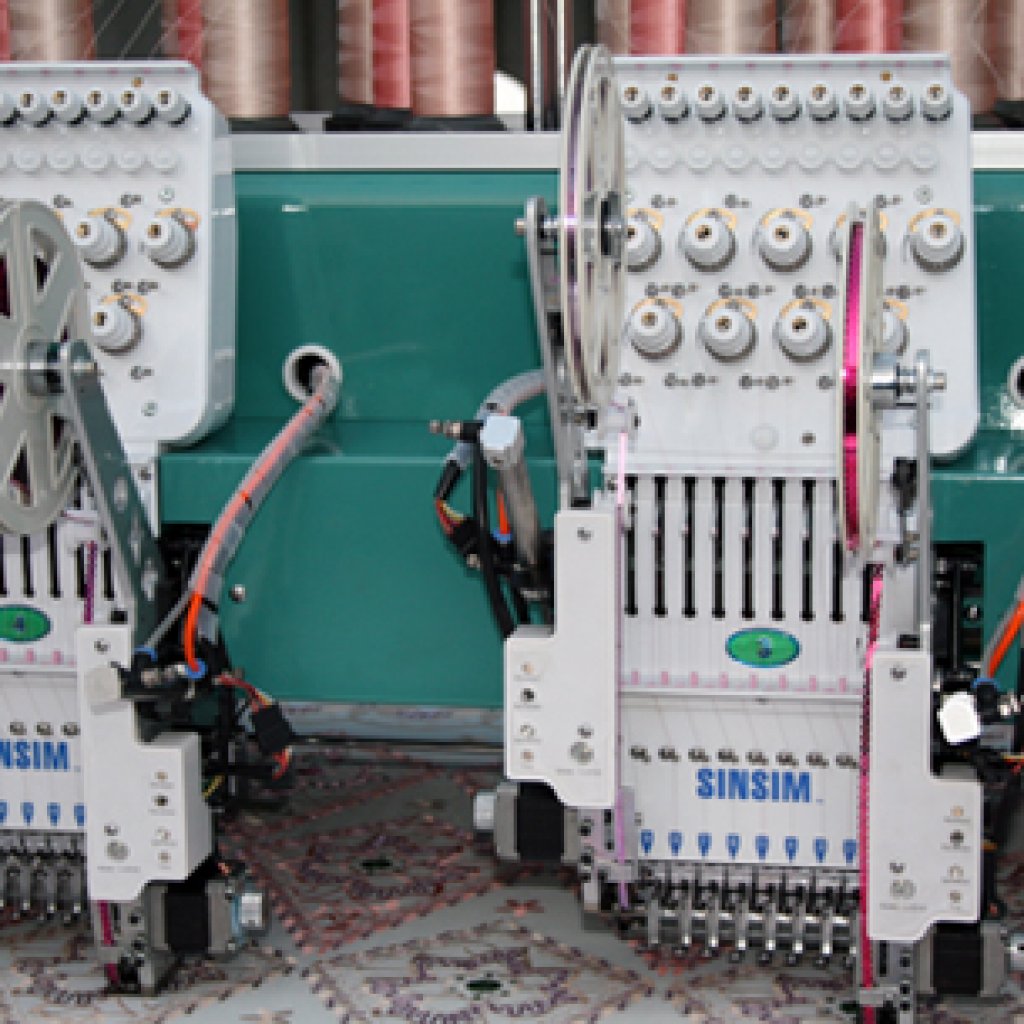

High Speed Embroidery Machine
Availability: In stock
Needles : 9 Needles
Heads Number : 6-20
High Speed Series Embroidery machine is developed by our company on the basis of flat embroidery , applying new type high speed computerized system and outer equipment, with high-precision spare parts and heads, as well as all servo frame drives, it can reach max speed 1000rpm and it greatly improves embroiderying efficiency. The High Speed Embroidery Machines of "SINSIM" brand widely apply batch process in the Toy,childrens wear,Sweater,Underclothes,Bedding, fashional field, handbag, wedding Dress, Shoes/Hat ,Curtain,Accessories, Top Grade Art ware etc.and with excellent performance.
- Max Speed:1000rpm
- Optimization of embroidery, it supports satin stitch mending, which it suitable for all clothes, with different shrinkage rates: is can also do interval mending to extend working life, and the embroidery will not become inferior with machine age, it can embroidery tatami and small letters to make excellent embroidery.
- all servo frame drives system, making the frame moving much more stably with less noise:.
- Advanced upper thread holder structure to make better cutting and avoid off-line as much as possible.
- applying stepping motor lock head rather than electromagnet lock head makes it operate at the best time stably with less noise.
- it has less noise and better cutting with stepping motor trimming system.
- automatic greasing control system, auto-greasing the head driving parts and bobbins according to stitch number, extending machine life under high speed working.
- 5inch,8inch,10inch touch monitor computer selectable. Modern Design of operating panel,USB input port ,Color LCD display showing real time stitching , Pre-sew design trace capable Emergency stop.
- Color-Change Mode: Step Color-change , Automatic Color Change. Auto color change according the design when in embroider.
- Thread Trimming system: Automatic Thread Trimmer, Solenoid thread holding, step motor thread trimming and catching.
- Needle Position Detecting : Rheostat . The machine has multi-heads and needles, can embroider several colors stitch flat designs at the same time, with auto trimmer function.
- Thread Break Detecting : Thread break detection ,Thread take-up spring or chopping wheel . Machine will auto stop and show the thread breakage head position if the thread break or the upper and udder thread used up when in the embroider.
- Memory: 2 Million , Design Number :200. After the design file input computer can keep forever, the memory storage up to 2,000,000 stitches and store 200 samples.
- Language: Chinese, English, Turkish, French, Spanish, Portuguese
- Data Transfer Floppy Disk: Pattern input/output support USB updating.
- Network Function: Support multi-machine network, data transfer, state monitoring, operating though network.
- Electricity: 220V/50Hz ,380V/50HZ available.
- Dahao electric system, 328 5 inch monitor /366 ,And you can choose top grade computer like C18/C88 Computer.
- Main motor :Dahao servo , Panasonic Servo ,Fuji Servo ,Sanyo Servo available.
- X/Y Driver: All servo or Stepping Motor available.
- Origian Japanese Rotary Hook
- New style Liner driver
- Automatic trimmer device( Adapting)
- Needles: 6/9/12 Needles ,Heads: 56 -84 Heads, Embroidery Space: X /150-1100mm,Y/300-1200mm.
Accessories Included :
- Table Support and Washer of machine foot
- Exploded View of Machine
- Operation Manual
- Tool Kit.
- Automatic Bobbin Winding Machine
- Air Compressor (If Need)
[Example of model code]
SINSIM-H (a), 9(b), 11(c)
Contents of model code :
