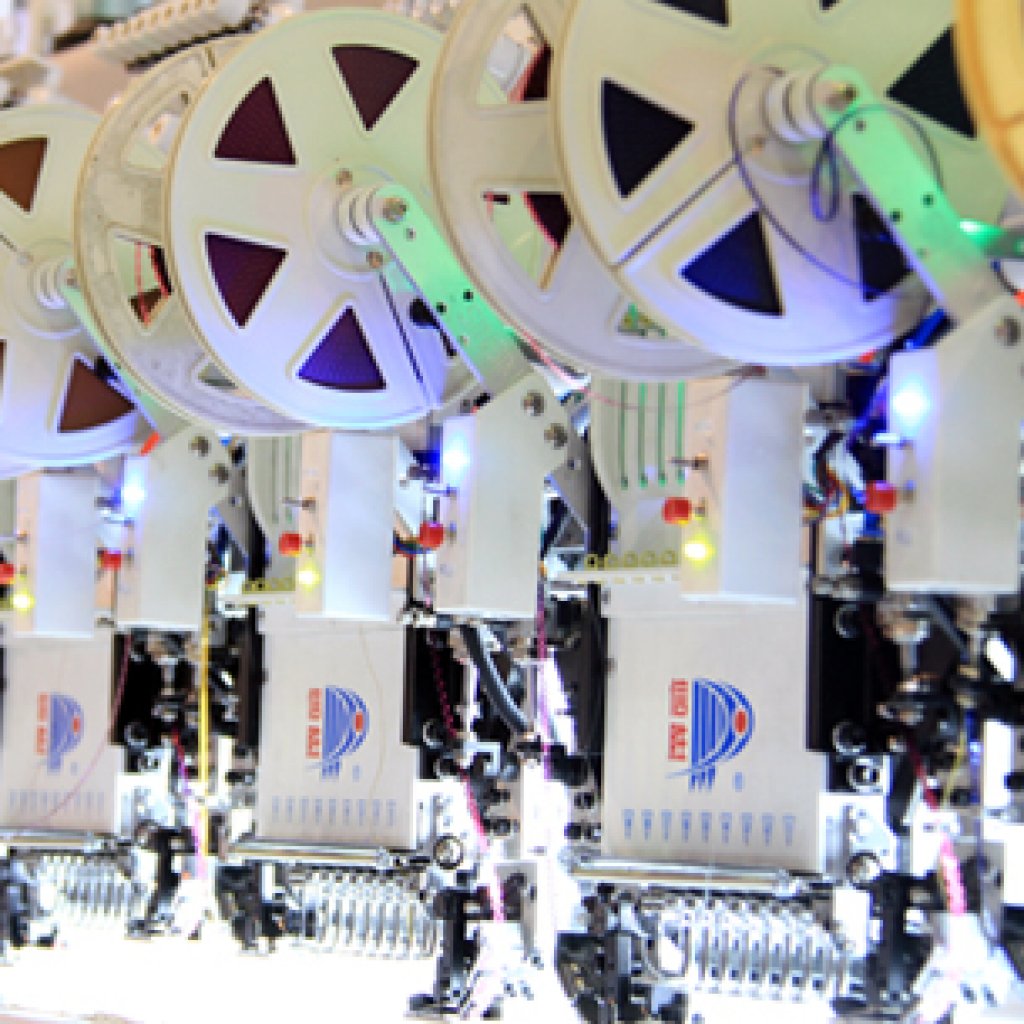

Sequin Embroidery Machine

Availability: In stock

Technical Parameter


Model: SINSIM-SQ920
Needles : 9 Needles
Heads Number : 20

Main Features:

- Single sequin, double sequin, twin sequin and double twin sequins available.

- Sequin devices can be installed on both sides, front and either left or right side( suggestion:clothes for sides and garments for front)

- Sequin available:3/5/7/9/11 mm, with shapes or round, square, drops and hearts.

- Stable performance of sequins delivering device and structure, and the max.speed is 900rpm.

- Double twin sequins (four sequins) device own not only the basic functions of single and double sequins, but also functions of overlap sequins, big-and-small sequins( amount can be adjusted according to the embroidering)

-Lever structure makes adjustment more convenient.

Main Function:

- 5inch, 8inch ,10inch touch monitor computer selectable. Modern Design of operating panel,USB input port ,Color LCD display showing real time stitching ,Pre-sew design trace capable Emergency stop.

- Color-Change Mode: Step Color-change , Automatic Color Change. Auto color change according the design when in embroider.

- Thread Trimming system: Automatic Thread Trimmer, Solenoid thread holding, step motor thread trimming and catching.

-Needle Position Detecting : Rheostat . The machine has multi-heads and needles, can embroider several colors stitch flat designs at the same time, with auto trimmer function.

- Thread Break Detecting : Thread break detection ,Thread take-up spring or chopping wheel . Machine will auto stop and show the thread breakage head position if the thread break or the upper and udder thread used up when in the embroider.

- Memory: 2 Million , Design Number :200. After the design file input computer can keep forever, the memory storage up to 2,000,000 stitches and store 200 samples.

- Language: Chinese, English, Turkish, French, Spanish, Portuguese

- Data Transfer Floppy Disk: Pattern input/output support USB updating.

- Network Function: Support multi-machine network, data transfer, state monitoring, operating though network.

- Electricity: 220V/50Hz ,380V/50HZ available.

Main configuration:

1.Dahao electric system, 328 -5inch monitor, and C18 /C88/316/366 can be assembled as per customers requestes.

2.Main motor :Dahao servo , Panasonic Servo ,Fuji Servo ,Sanyo Servo available.

3.X/Y Driver: All servo or Stepping Motor available.

4.Origian Japanese Rotary Hook

5.New style Liner driver

6.Needles:4/6/9/12/15, Heads:1-50 heads, Embroidery Space: X /150-1100mm,Y/300-1200mm.

Accessories Included :

- Table Support and Washer of machine foot

- Exploded View of Machine

- Operation Manual

- Tool Kit.

- Automatic Bobbin Winding Machine

- Air Compressor (If Need)

[Example of model code]



SINSIM-D (a), 9(b), 20(c)
Contents of model code :
a=model name
