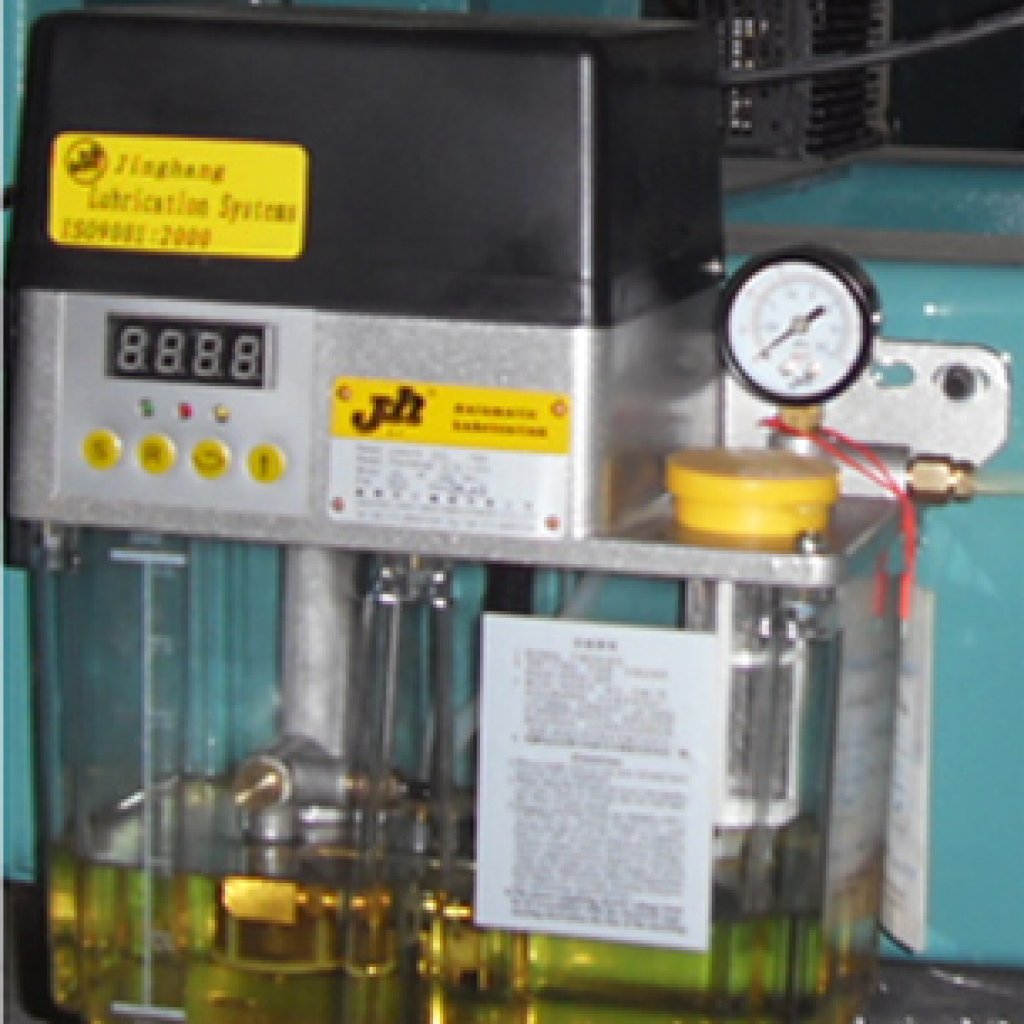

Automatic Lubrication System
Availability: In stock
Comprehensive Functions This control system supports the following working modes: start-up timing lubrication, ma
This control system supports the following working modes: start-up timing lubrication, manual greasing and auto-greasing according to stitch number, thus satisfies the demands of clients.
After start-up,This system will automatically enter the previous operation mode and needn't to reset parameter, it adopting the LCD screen to display the existing parameter features the user-friendly interface.
This system only needs to externally connect a sensor to collect the ratation number of main-shaft.the oil pump and solenoid valve is supplied with power from system itself. And the connection is very easy.
Support parameter Power-off Protection
When the power is off suddenly, the present working parameters will be saved automatically and promptly, After the machine is powered on again, the parameters will be restared. Users needn't to set them again.
Chinese and English language Supported.
This system supportes chinese and english interface, and the shift between them is very easy.

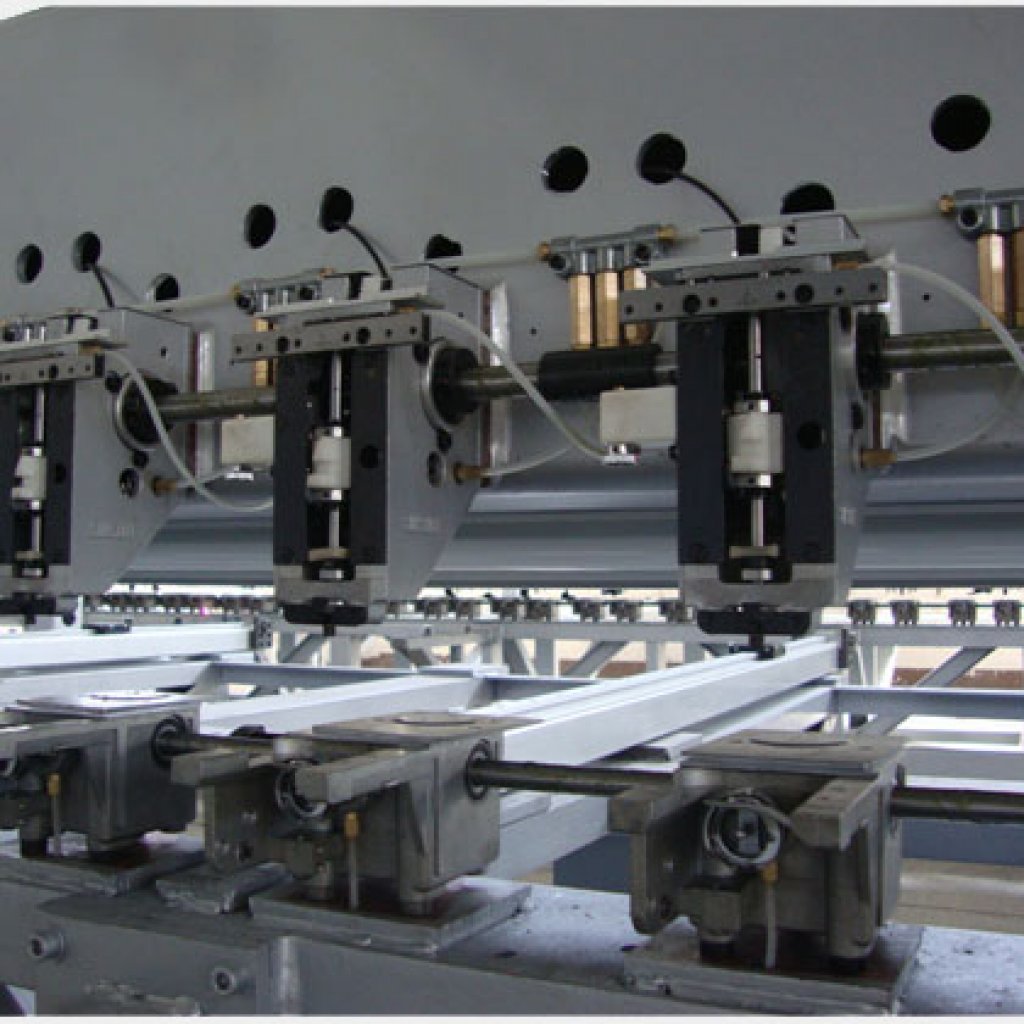

This product applies to the computer embroidery machine, no matter they are high- speed kind or not, it is alo applicable to the computers made by Dahao, like 322.328.2x6 and CX8.
Communicate with Main Controller
This product can communicate with CX8 computer, therefore the user can set parameters and check the greasing information via the operator.
