Four In One Mixed Machine
Availability: In stock
Model : SINSIM-SF
Needles : 4 Needles
Heads Number : 84 or 56

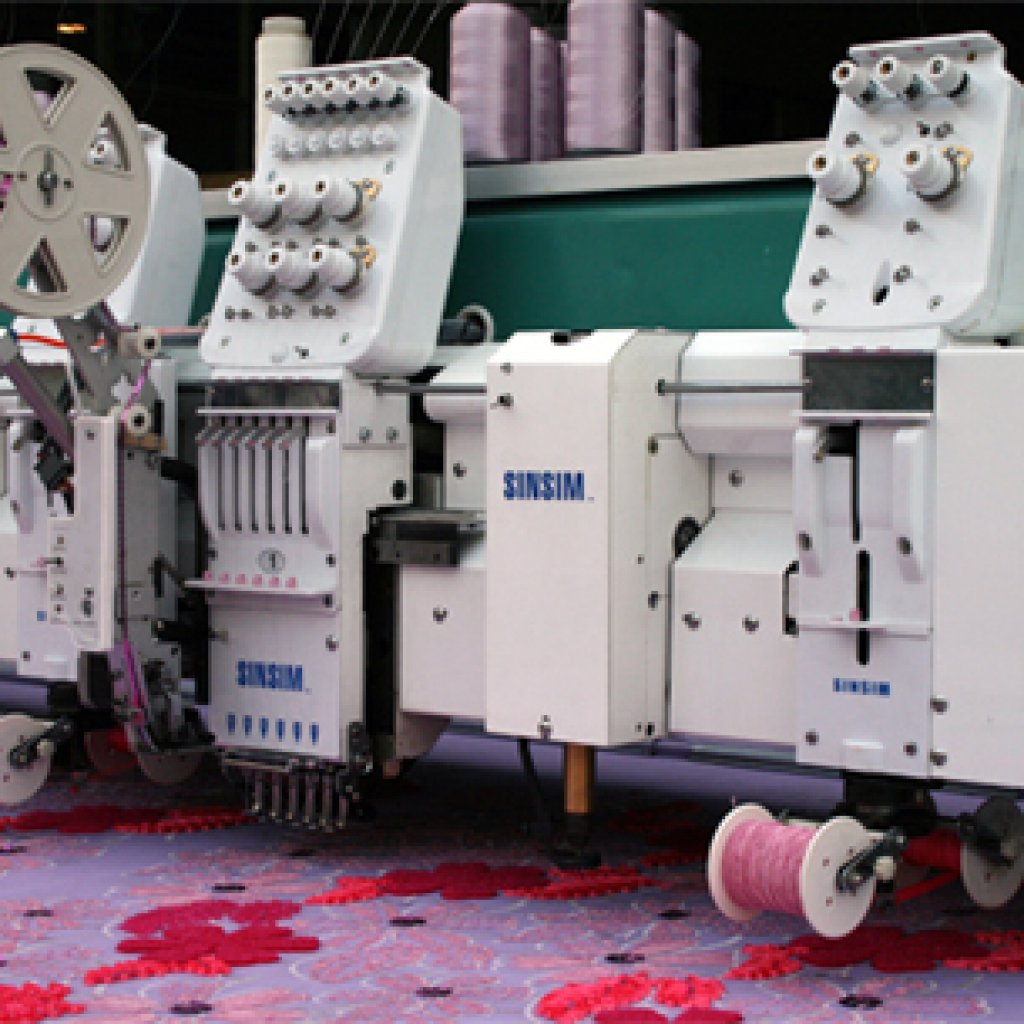

SINSIM 4 In 1 Mixed Embroidery Machine is special type embroidery machine with high performance-price ratio,intergrating flat, cording,sequins and looping, and it realized the combination of 6-color looping, colorful flat , sequins and cording embroidery,Its embroidery appears elegant,fashionable and stereoscopic.it is widely used for embroidering garments,curtains, bedding and crafts with potential development.
- Independent model control Loop : D shaft, H shaft, Needle Bar Promotion ,Cutter Tapping: M shaft, Press Foot, Oscillating
- Automatic adjust needle Height According to design and thickness of cloth, height of needles(10 levels) can be adjusted by manual or computerized way, in order to get the best embroidery tensility and appearance;
- Automatic color changing, presser foot lifting and auto trimmer;
- Function of feedback control system: Appling feedback control system, it's able to make precise control of needles and loop hook and it makes better embroidery;
- Standby function: after finishing certain embroidering, needles & presser foot will automatically lift 27mm high, for the following embroidering;
- High-speed-low-noise machine designing: it reaches 600 rpm for chain stitch and 850 rpm for flat embroidery; embroidering speed will be automatically controlled during process of embroidering on the basis of differences of needles track; additionally, servo motors and are applied for main spare parts to perfectly act in concert with high-tech electronics; all of these guarantee the low noise working;
- Function of choosing target heads alternately: automatically switch over between chain stitch and flat embroidering, to simplify the original time-consuming embroidering procedures;
- 10inch monitor computer selectable. Modern Design of operating panel,USB input port ,Color LCD display showing real time stitching ,Pre-sew design trace capable Emergency stop.
- Color-Change Mode: Step Color-change , Automatic Color Change. Auto color change according the design when in embroider.
- Thread Trimming system: Automatic Thread Trimmer, Solenoid thread holding, step motor thread trimming and catching.
- Needle Position Detecting : Rheostat . The machine has multi-heads and needles, can embroider several colors stitch flat designs at the same time, with auto trimmer function.
- Thread Break Detecting : Thread break detection ,Thread take-up spring or chopping wheel . Machine will auto stop and show the thread breakage head position if the thread break or the upper and udder thread used up when in the embroider.
- Memory: 2 Million , Design Number :200. After the design file input computer can keep forever, the memory storage up to 2,000,000 stitches and store 200 samples.
- Language: Chinese, English, Turkish, French, Spanish, Portuguese
- Data Transfer Floppy Disk: Pattern input/output support USB updating.
- Network Function: Support multi-machine network, data transfer, state monitoring, operating though network.
- Electricity: 220V/50Hz ,380V/50HZ available.
- Dahao electric system, 219/10inch monitor. C18/C88 Computer can be available.
- Main motor :Dahao servo , Panasonic Servo ,Fuji Servo ,Sanyo Servo available.
- X/Y Driver: All servo or Stepping Motor available. 4.Origian Japanese Rotary Hook
- New style Liner driver
- Color: 4/6/ ,Flat head Needles: 4/6/9. Heads: 2-22 Heads, Embroidery Space: X /300-1100mm,Y/300-1200mm.
Accessories Included :
- Table Support and Washer of machine foot
- Exploded View of Machine
- Operation Manual
- Tool Kit.
- Automatic Bobbin Winding Machine
- Air Compressor (If Need)
[Example of model code]
SINSIM-MA (a), 6(b), 6(c)06(D)
