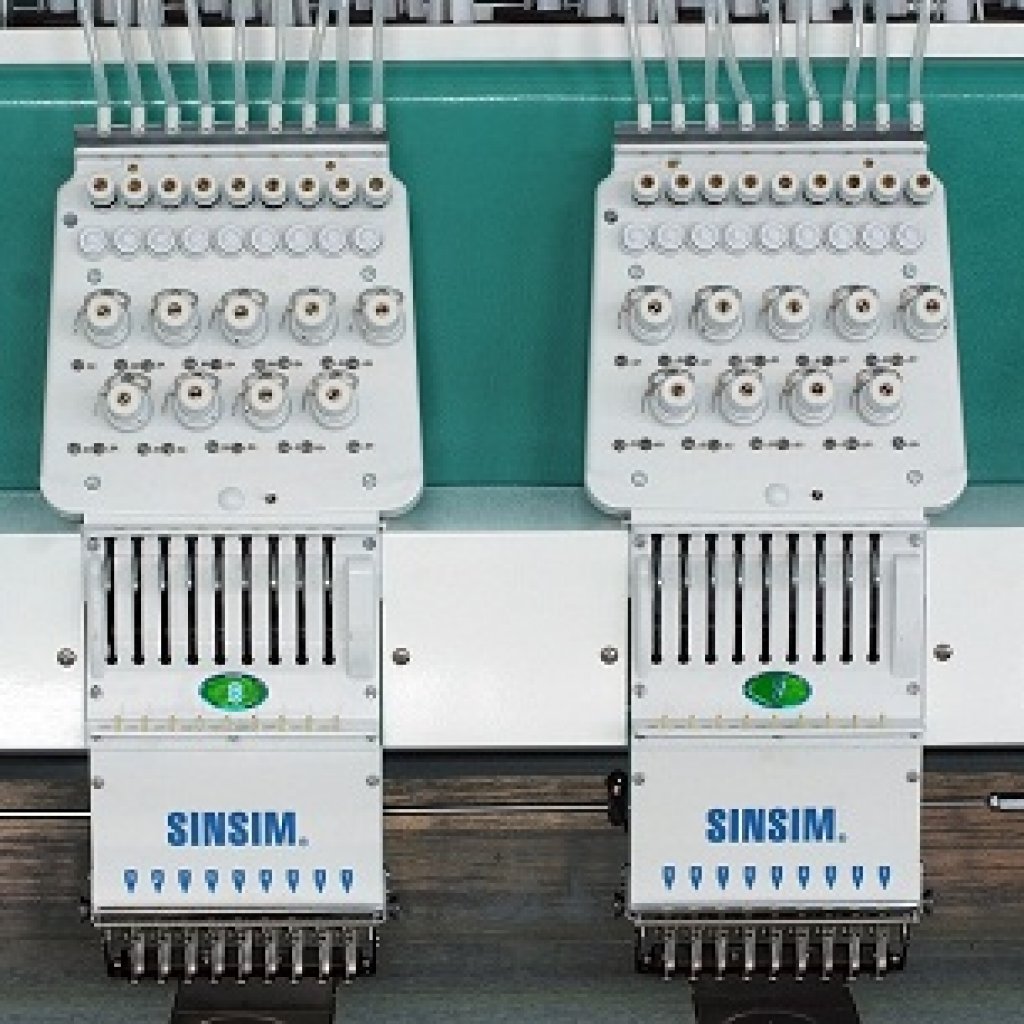

Flat Embroidery Machine
التوفر: موجود في المخزن
Needles : 9 Needles
Heads Number : 20
The various Embroidery Machines of "SINSIM" brand widely apply batch process in the Toy,childrens wear,Sweater,Underclothes,Bedding, fashional field, handbag, wedding Dress, Shoes/Hat ,Curtain, Accessories, Top Grade Art ware etc.and with excellent performance.
- 5inch, 8inch ,10inch touch monitor computer selectable. Modern Design of operating panel,USB input port ,Color LCD display showing real time stitching ,Pre-sew design trace capable Emergency stop.
- Color-Change Mode: Step Color-change , Automatic Color Change. Auto color change according the design when in embroider.
- Thread Trimming system: Automatic Thread Trimmer, Solenoid thread holding, step motor thread trimming and catching.
- Needle Position Detecting : Rheostat . The machine has multi-heads and needles, can embroider several colors stitch flat designs at the same time, with auto trimmer function.
- Thread Break Detecting : Thread break detection ,Thread take-up spring or chopping wheel . Machine will auto stop and show the thread breakage head position if the thread break or the upper and udder thread used up when in the embroider.
- Memory: 2 Million , Design Number :200. After the design file input computer can keep forever, the memory storage up to 2,000,000 stitches and store 200 samples.
- Language: Chinese, English, Turkish, French, Spanish, Portuguese.
- Data Transfer Floppy Disk: Pattern input/output support USB updating.
- Network Function: Support multi-machine network, data transfer, state monitoring, operating though network.
- Electricity: 220V/50Hz ,380V/50HZ available.
- Dahao electric system, 322 5 inch monitor (without trimmer)/328 ( with trimmer),And you can choose top grade computer like C18/C88/366 Computer.
- Main motor :Dahao servo , Panasonic Servo ,Fuji Servo ,Sanyo Servo available.
- X/Y Driver: All servo or Stepping Motor available.
- Origian Japanese Rotary Hook
- New style Liner driver
- Automatic trimmer device( Adapting)
- Needles: 3/4 /6/9/12/15Needles ,Heads: 1-56 Heads, Embroidery Space: X /150-1100mm,Y/300-1200mm.
Accessories Included :
- Table Support and Washer of machine foot
- Exploded View of Machine.
- Operation Manual.
- Tool Kit.
- Automatic Bobbin Winding Machine
- Air Compressor (If Need)
[Example of model code]
SINSIM-F (a), 9(b), 28(c)
Contents of model code :
