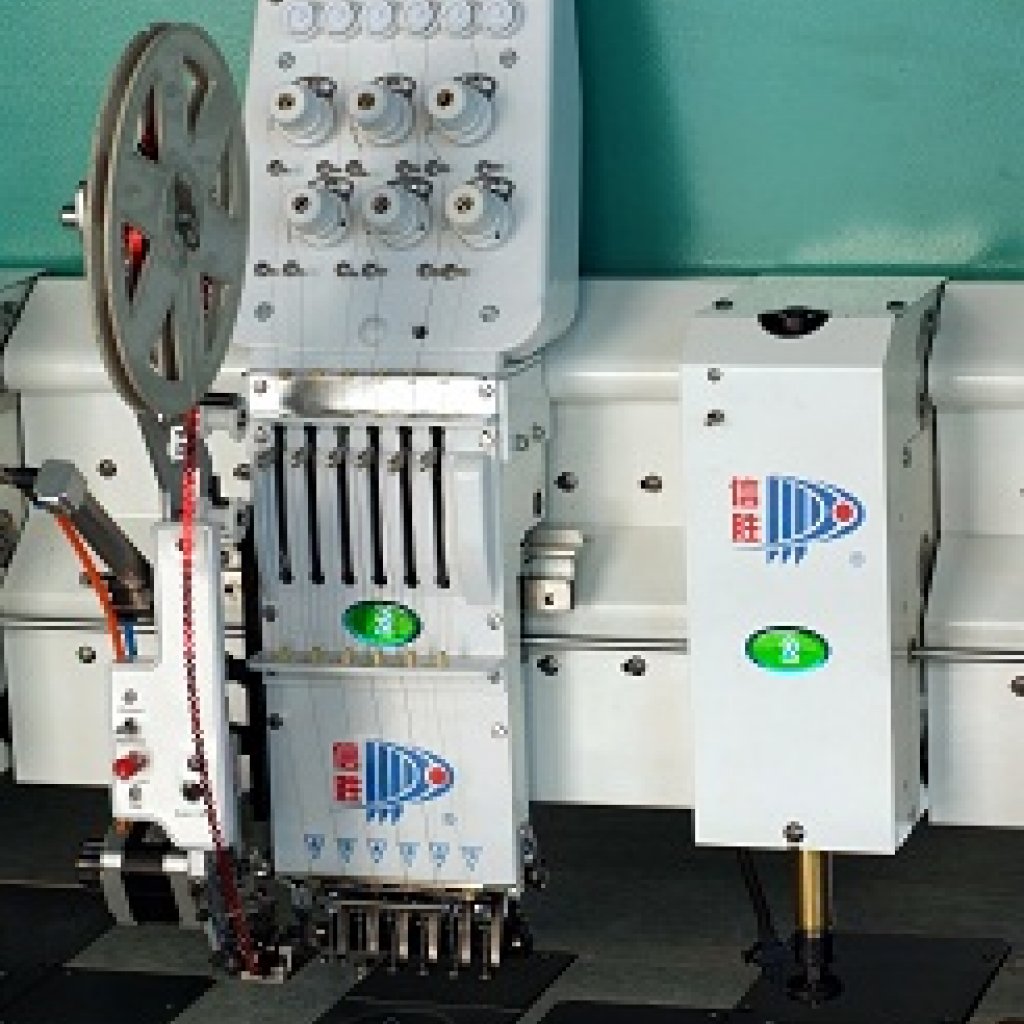

Mixed Chenille Embroidery Machine

التوفر: موجود في المخزن

Technical Parameter

Model: SINSIM-MC614
Needles : 6 Needles
Heads Number : 14

Features:

The Mix Chenille Embroidery Machines of "SINSIM" brand widely apply batch process in the Table cloth, Napkin,Bed Blanket,Pillowcase,Chilrden wear,Overpull, badge,Woollen blanket, Lady's Shirt,Cap,Cloth, Silk, linen etc . A machine can be in the same embroidery to complete a variety of traditional techniques of roidery, and add a towel stitch, chain stitch effect, integration of a variety of design and materials, reflecting the highest level of embroidery .

Main Features:

- Embroidery computer control without human intervention, to achieve embroidery automation and standardization.

- According to choose different color pattern design configuration, implementation to automatically change color in the embroidery.

- Can automatically adjust the length of towel Embroider trace.

- Can automatically change towel embroidery trace and chain embroidery trace.and automatically change to flat stitch embroidery trace.

- 5inch, 10inch touch monitor computer selectable. Modern Design of operating panel, USB input port ,Color LCD display showing real time stitching ,Pre-sew design trace capable Emergency stop.

- Color-Change Mode: Step Color-change , Automatic Color Change. Auto color change according the design when in embroider.

- Thread Trimming system: Automatic Thread Trimmer, Solenoid thread holding, step motor thread trimming and catching.

- Needle Position Detecting : Rheostat . The machine has multi-heads and needles, can embroider several colors stitch flat designs at the same time, with auto trimmer function.

- Thread Break Detecting : Thread break detection ,Thread take-up spring or chopping wheel . Machine will auto stop and show the thread breakage head position if the thread break or the upper and udder thread used up when in the embroider.

- Memory: 2 Million , Design Number :200. After the design file input computer can keep forever, the memory storage up to 2,000,000 stitches and store 200 samples.

- Language: Chinese, English, Turkish, French, Spanish, Portuguese.

- Data Transfer Floppy Disk: Pattern input/output support USB updating.

- Network Function: Support multi-machine network, data transfer, state monitoring, operating though network.

- Electricity: 220V/50Hz ,380V/50HZ available.

Main configuration:

- Dahao electric system, 229/5inch monitor and 219/10inch monitor.

- Main motor :Dahao servo , Panasonic Servo ,Fuji Servo ,Sanyo Servo available.

- X/Y Driver: All servo or Stepping Motor available.

- Origian Japanese Rotary Hook

- New style Liner driver

- Color: 4/6/ ,Flat head Needles: 4/6/9. Heads: 2-22 Heads, Embroidery Space: X /300-1100mm,Y/300-1200mm.

Accessories Included :

- Table Support and Washer of machine foot

- Exploded View of Machine

- Operation Manual

- Tool Kit.

- Automatic Bobbin Winding Machine

- Air Compressor (If Need)

[Example of model code]



SINSIM-MC(a), 6(b), 9(c)06(d)
Contents of model code :
a=model name
